Trade Well/Rushil Enterprise

we are Authorised Channel Partner of ABB Make Switch Gear in Gujarat. We are in this field from last 18 years with the brand name of Rushill Enterprise And Trade well.

Latest update

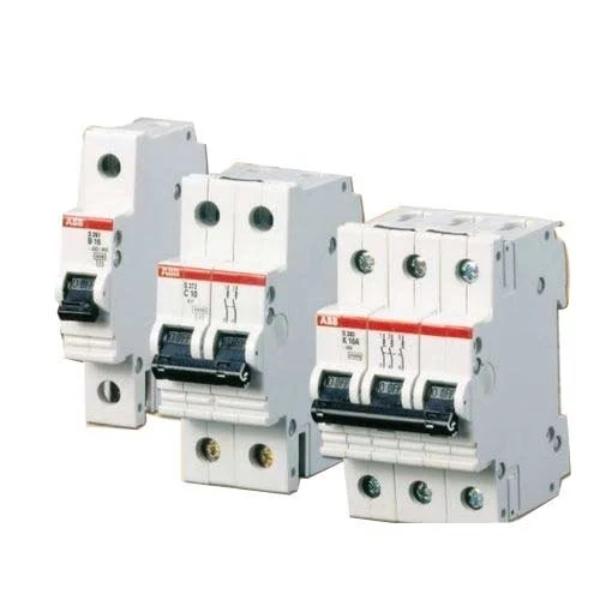

Miniature circuit breaker (MCB)
We are authorised dealer for ABB make MCB having AC or DC rating in all ampere.

Technical Features
Electrical Data SH200 M
Standards IS/IEC 60898-1
Poles 1P, 2P, 3P, 4P, 1P +N, 3P +N
Tripping Characteristics B, C, D
Rated Curent 0.5A - 63 A
Rated Voltage
1P : 230/400/415 V AC
1P + N : 230 V AC
2…4P : 400/415 V AC
3P + N : 400/415 V AC
Insulation Voltage
250 V AC (Phase to Ground)
440 V AC (Phase to Phase)
Max Operating Voltage
1P: 253 V AC
2…4P : 440 V AC
Min Operating Voltage 12 V AC
Rated Frequency 50/60 Hz
Rated Short Circuit Capacity 10kA
Energy Limiting Class 3
Over Voltage Category (B, C upto 40A) III
Pollution Degree 2
Rated Impulse withstand Voltage
4kV (Test Voltage 6.2kV at Sea Level,
5kV at 2, 000 m)
Dielectric Test Voltage 2kV (50/60 Hz, 1 min)
Accessories mountable No
Miniature circuit breaker (MCB) We are authorised dealer for ABB make MCB having AC or DC rating in all ampere. Technical Features Electrical Data SH200 M Standards IS/IEC 60898-1 Poles 1P, 2P, 3P, 4P, 1P +N, 3P +N Tripping Characteristics B, C, D Rated Curent 0.5A - 63 A Rated Voltage 1P : 230/400/415 V AC 1P + N : 230 V AC 2…4P : 400/415 V AC 3P + N : 400/415 V AC Insulation Voltage 250 V AC (Phase to Ground) 440 V AC (Phase to Phase) Max Operating Voltage 1P: 253 V AC 2…4P : 440 V AC Min Operating Voltage 12 V AC Rated Frequency 50/60 Hz Rated Short Circuit Capacity 10kA Energy Limiting Class 3 Over Voltage Category (B, C upto 40A) III Pollution Degree 2 Rated Impulse withstand Voltage 4kV (Test Voltage 6.2kV at Sea Level, 5kV at 2, 000 m) Dielectric Test Voltage 2kV (50/60 Hz, 1 min) Accessories mountable No
